XNEX
- 1、Application：Face Milling Inserts
- 2、Materials: steel、cast iron、stainless steel
- 3、The inserts are grinding fully to make sure high dimensional accuracy, width tolerance ± 0.025mm; With wiper edge designing to assure the performance;
- 4、Exchangeable with SECO XNEX series inserts
DESCRIPTION

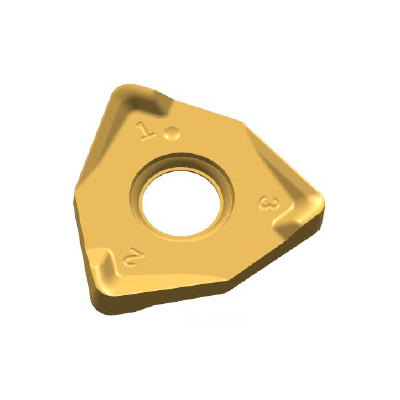

| 3D Image |  | |||||

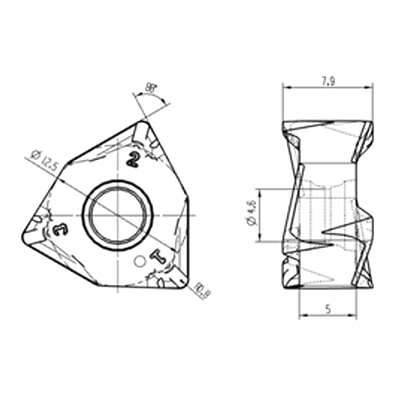

| 2D |  | |||||
| Propertitiy | 1、Application：Face Milling Inserts | |||||
| 2、Materials: steel、cast iron、stainless steel | ||||||
| 3、The inserts are grinding fully to make sure high dimensional accuracy, width tolerance ± 0.025mm; With wiper edge designing to assure the performance; | ||||||
| 4、Exchangeable with SECO XNEX080608TR-ME09 and XNEX080612TR-ME09 series inserts | ||||||
| Item | Description | IC(mm) | S(mm) | R(mm) | ød(mm) | α(º) |
| 1 | XNEX080608TR-ME09 | 12.50 | 5.0 | 0.80 | 4.6 | 88 |
| 2 | XNEX080612TR-ME09 | 12.50 | 5.0 | 1.20 | 4.6 | 88 |
| 3 | ||||||
| 4 | ||||||
| 5 | ||||||
| 6 | ||||||
