• TNMX
  • TNMX
TNMX
  • 1、Application:Face Milling Inserts
  • 2、Materials: steel、cast iron、stainless steel
  • 3、The inserts are grinding fully to make sure high dimensional accuracy, width tolerance ± 0.025mm; With wiper edge designing to assure the performance;
  • 4、Exchangeable with Taegutec TNMX2207PNTN series products

DESCRIPTION

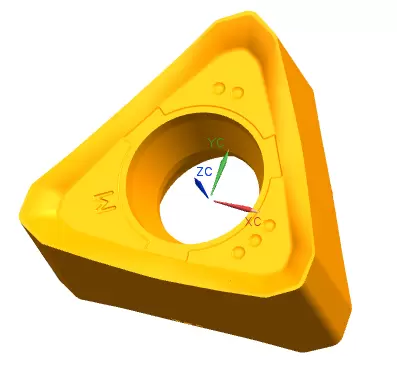

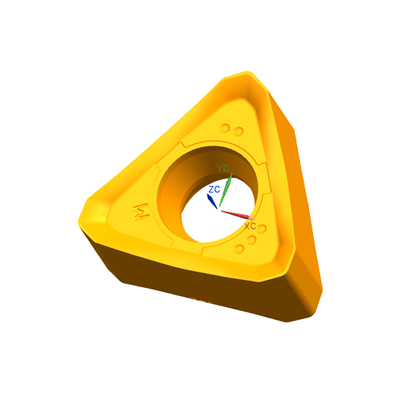

3D Imageimage.png

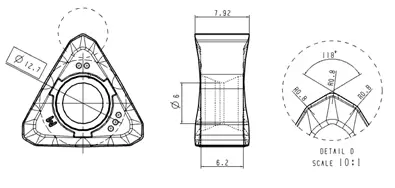

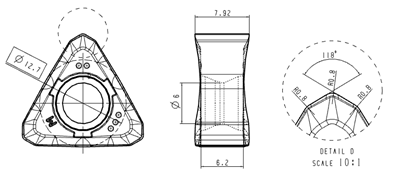

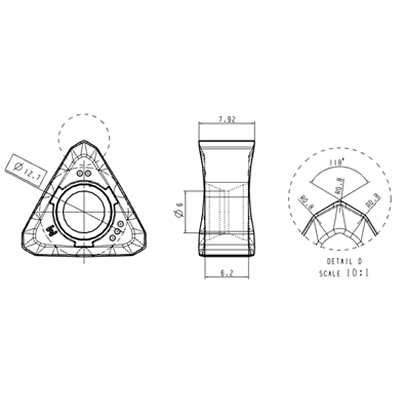

2D image.png
Propertitiy1ApplicationFace Milling Inserts
2Materials: steelcast ironstainless   steel
3The inserts are grinding fully to make sure high dimensional   accuracy, width tolerance  ± 0.025mm;   With wiper edge designing to assure the performance;
4Exchangeable with Taegutec TNMX2207PNTN series products


ItemDescriptionIC(mm)S(mm)R(mm)ød(mm)
1TNMX2207PNTN12.706.20.86
2





3





4





5
