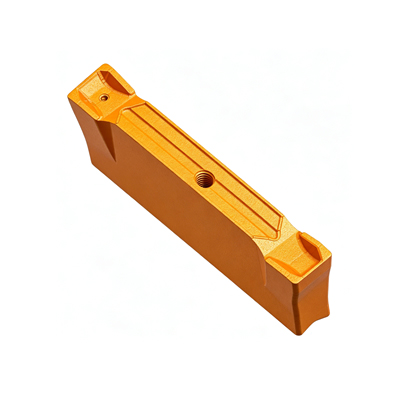

DGR3102C-6D
- 1、Application：Parts cut off and remove the small cylinders
- 2、Materials: Steel、Stainless Steel
- 3、3R mold to assure high precision、good dimensional accuracy and good consistency;
- 4、Exchangable to ISCAR
DESCRIPTION
| Propertitiy | 1、Application：Parts cut off and remove the small cylinders | |||||
| 2、Materials: Steel、Stainless Steel | ||||||
| 3、3R mold to assure high precision、good dimensional accuracy and good consistency; | ||||||
| 4、Customized designing acceptable | ||||||
| 5、Exchangable to ISCAR | ||||||
| Item | Description | Length(mm) | Width(mm) | Angle αº | ||
| 1 | DGR3102C-6D | 21 | 3 | 6° | ||
| 2 | DGR3102C-15D | 21 | 3 | 15° | ||
| 3 | ||||||
| 4 | ||||||
| 5 | ||||||
| 6 | ||||||
FAQ
1: Do you provide samples? Are they free?
A: Yes, we provide insert samples and they are free when the insert quantity is less than 5 pieces, but you need to pay the delivery charge to DHL. We also offer you complimentary milling cutter bodies if you purchase milling inserts up to a certain amount.
2. What’s your payment terms?
A:T/T or L/C.
3. What’s your delivery time?
A:Usually we will arrange the shipment in 7-15 days.
