MPHT
- 1、Application：Slot Milling Inserts
- 2、4 cutting edges available, very economical;;
- 3、Customized designing acceptable;
- 4、Exchangable to ZCC-CT MPHT series inserts;
DESCRIPTION

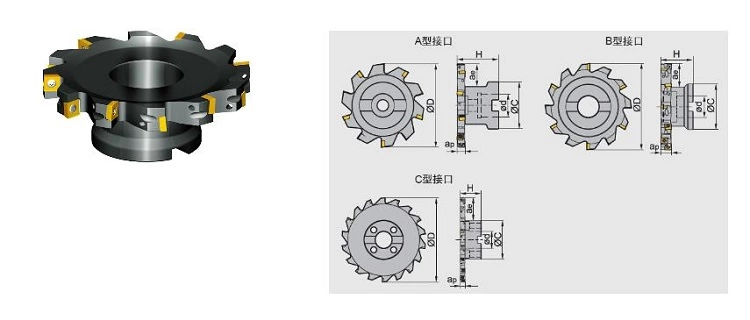

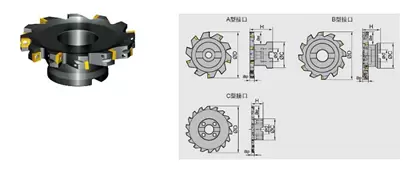

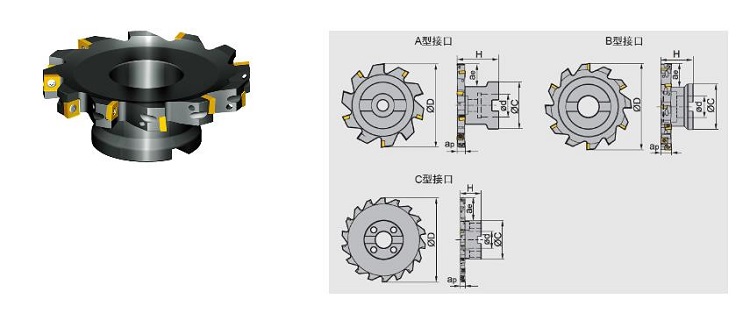

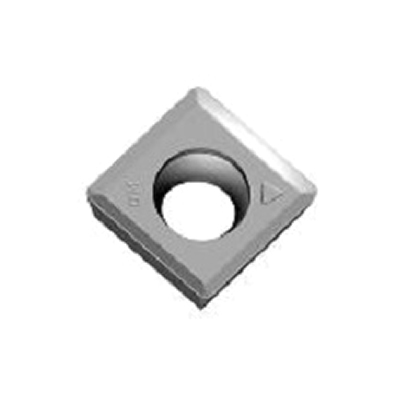

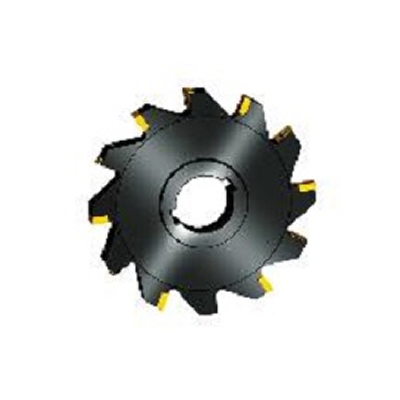

| 3D Image |  | |||||

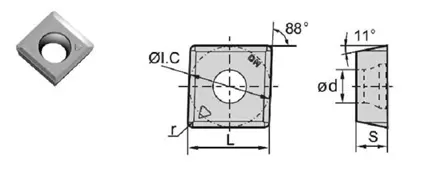

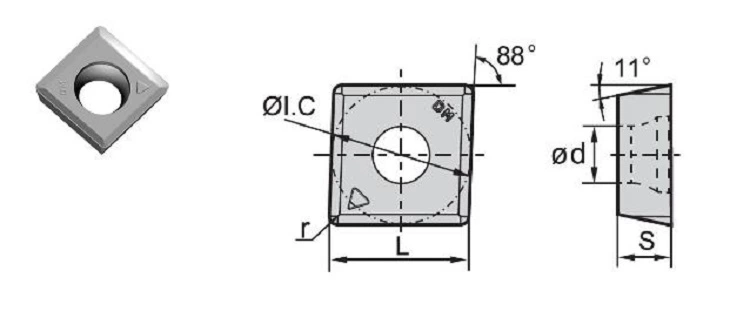

| 2D |  | |||||
| Propertitiy | 1、Application：Slot Milling Inserts | |||||
| 2、Materials: Steel、Cast Iron | ||||||
| 3、4 cutting edges available, very economical;; | ||||||
| 4、Customized designing acceptable; | ||||||
| 5、Exchangable to ZCC-CT MPHT series inserts; | ||||||
| Item | Description | ￠IC(mm) | ￠d(mm) | S(mm) | r(mm) | |
| 1 | Z-MPHT060304-DM | 6.35 | 2.80 | 3.18 | 0.40 | |
| 2 | Z-MPHT080305-DM | 8.30 | 3.40 | 3.18 | 0.50 | |
| 3 | Z-MPHT120408-DM | 12.70 | 5.56 | 4.76 | 0.80 | |
| 4 | ||||||
| 5 | ||||||
FAQ
1: Do you provide samples? Are they free?
A: Yes, we provide insert samples and they are free when the insert quantity is less than 5 pieces, but you need to pay the delivery charge to DHL. We also offer you complimentary milling cutter bodies if you purchase milling inserts up to a certain amount.
2. What’s your payment terms?
A:T/T or L/C.
3. What’s your delivery time?
A:Usually we will arrange the shipment in 7-15 days.
