ZCC-CT Shims

1、 Original raw materials only, assure the shims owning enough strength to protect the inserts and tools; 2、 The shims are grinding top&bottom surface, assure the flatness and parallelism within 0.01mm, and some shims are periphery grinding also with higher accuracy; 3、 Various types shims are available; 4、 Suitable for tool holders&milling cutters made by tool manufacturers of Chinese mainland

电子邮件: cwtools@cwprecisiontools.com

描述

Item	Description	Image	￠IC	￠d	S	r
1	C09AP		8.5	4.9	3.18	0.8
2	C12AP		12.5	6.9	3.18	1.2
3	C16AP		15.7	7.9	4.76	1.6
4	C19AP		18.85	10	4.76	1.6
5	D11AP		9.35	5.2	2.7	0.8
6	D15AP		12.5	6.9	3.18	1.2
7	R10AP		8.4	4.7	3.18
8	R12AP		10	4.7	3.18
9	S09AP		8.5	4.9	3.18
10	S12AP		12.5	6.9	3.18	1.2
11	S15AP		15.7	7.9	4.76	1.6
12	S19AP		18.85	10	4.76	1.2

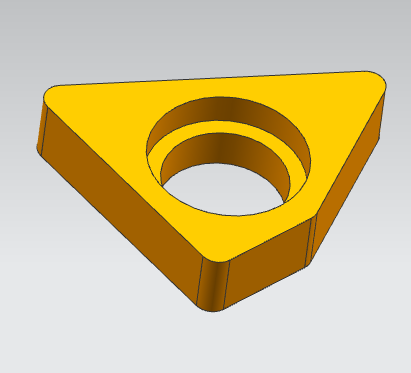

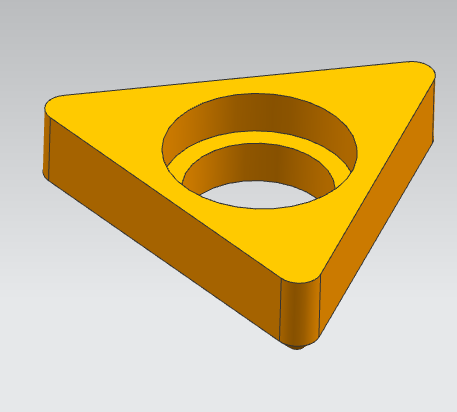

13	T16AP		9.35	5	2.7	0.8
14	T16APB		9.35	5	2.7	0.8
15	T22AP		12.5	6.9	3.18	1.2
16	T27AP		15.7	7.9	4.76	1.5

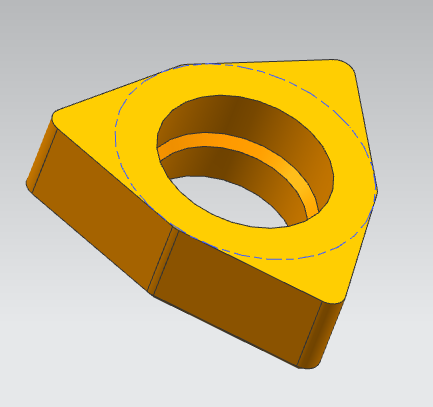

17	W06AP		9.35	5	2.7	0.8
18	W08AP		12.5	8.5	3.18	1.2
19	C12CC		12.5	3.5	3.18	1.2
20	K16CC		14.7*9.33	3.5	4.8	1
21	K16CCL		14.7*9.33	3.5	4.8	1
22	R12CC		12.575	3.5	3.18
23	S12CC		12.5	3.5	3.18	1.2
24	T16CC		9.35	3.5	3.18	1.2
25	C19BM		18.6	11.4	4.76	1.6
26	D11BM		9.2	5.8	3.3	1
27	D15BM		12.4	7.4	4.76	1
28	R12BM		12	7.4	4.76
29	S12BM		12.4	7.4	4.76	1.2
30	S15BM		15.6	9.8	4.76	1.6
31	S19BM		18.65	11.2	4.76	1.6
32	S25BM		25	14.4	8.12	2.4
33	T16BM		9.2	5.8	3.3	1
34	T22BM		12.4	7.4	4.76	1
35	V16BM		9.2	5.8	3.3	0.8
	W06BM		9.2	5.8	3.3	1
36	W08BM		12.4	7.5	4.76	1
37	D11BS		8.5	5.4	3.18	0.4
38	S12BS		11.5	6.4	3.18	0.4
39	T16BS		8.5	5.4	3.18	0.4
40	V16BS		8.4	5.4	3.18	0.3
