首页 / Products/ Milling Inserts/ Rough Feed Milling Inserts
  • XNEG
  • XNEG

XNEG

1、Application：Rough Feed Milling application with shank diameter below 16mm 2、Materials: Steel、Stainless Steel、Cast Iron 3、Features: Large rake angle designing、Sharp edge;Negative clearance angle inserts with 4 cutting edges, economical selection;The inserts with peripheral grinding to assure high precision dimension, make the cutting very easy; 4、 Exchangeable with XNEG070310 in

电子邮件: cwtools@cwprecisiontools.com
描述

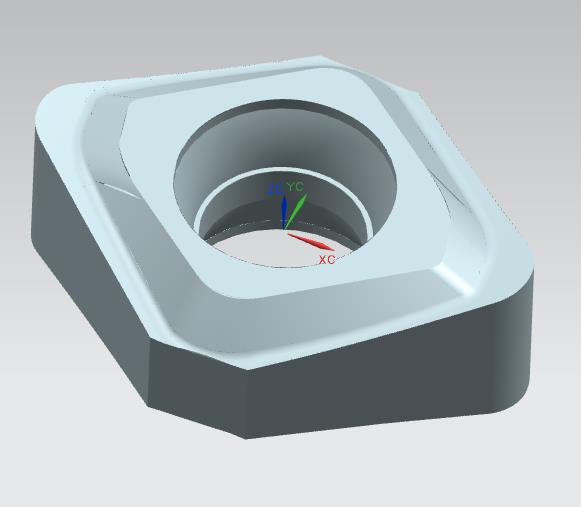

3D Imageimage.png

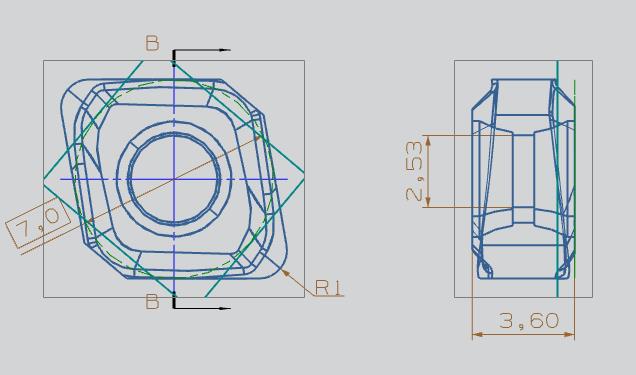

2D image.png
Propertitiy1、Application：Rough Feed Milling application with   shank diameter below 16mm
2、Materials: Steel、Stainless Steel、Cast Iron
3、Features: Large rake angle designing、Sharp edge;Negative clearance angle   inserts with 4 cutting edges, economical selection;The   inserts with peripheral grinding to assure high precision dimension, make the   cutting very easy;
4、 Exchangeable with XNEG070310 inserts;

ItemDescriptionIC(mm)Ød(mm)S(mm)r(mm)
1XNEG0703107.0002.533.601.00
2





3





4





5






●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

●

  • ●

    ●

  • ●

    ●

    ●

    ●

    ●

  • ●

    ●

    ●

  • ●

    ●

    ●

    ●

    ●

  • ●

    ●
