TNMX

1、Application：Face Milling Inserts 2、Materials: steel、cast iron、stainless steel 3、The inserts are grinding fully to make sure high dimensional accuracy, width tolerance ± 0.025mm; With wiper edge designing to assure the performance; 4、Exchangeable with Taegutec TNMX2207PNTN series products

电子邮件: cwtools@cwprecisiontools.com
描述

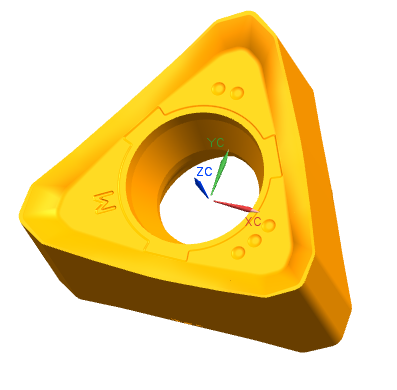

3D Imageimage.png

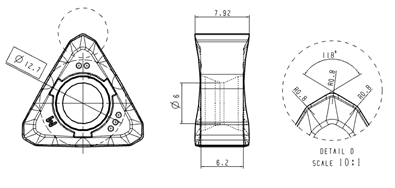

2D image.png   　
Propertitiy1、Application：Face Milling Inserts
2、Materials: steel、cast iron、stainless   steel
3、The inserts are grinding fully to make sure high dimensional   accuracy, width tolerance  ± 0.025mm;   With wiper edge designing to assure the performance;
4、Exchangeable with Taegutec TNMX2207PNTN series products


ItemDescriptionIC(mm)S(mm)R(mm)ød(mm)
1TNMX2207PNTN12.706.20.86
