Finish Ball Milling Inserts

1、Application：Mold forming and high-priecision milling 2、Materials: Stainless Steel、Steel、High temperature alloys 3、Exchangable with ZCC-CT ROHX series inserts 4、Double edges, Zero rake angle designing with excellent edge strength 5、Customized designing acceptable

电子邮件: cwtools@cwprecisiontools.com

描述

3D Image

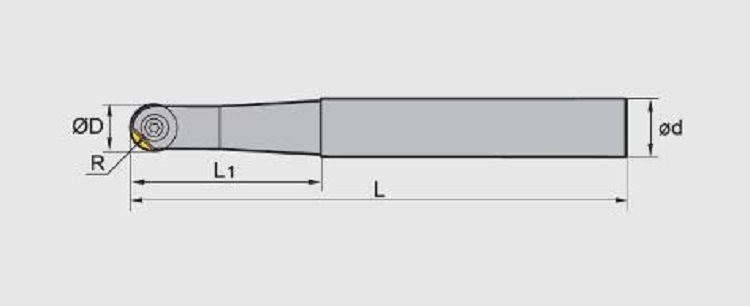

2D
Propertitiy	1、Application：Mold forming and high-priecision milling
	2、Materials: Stainless Steel、Steel、High temperature alloys
	3、Exchangable with ZCC-CT ROHX series inserts
	4、Double edges, Zero rake angle designing with excellent edge strength
	5、Customized designing acceptable

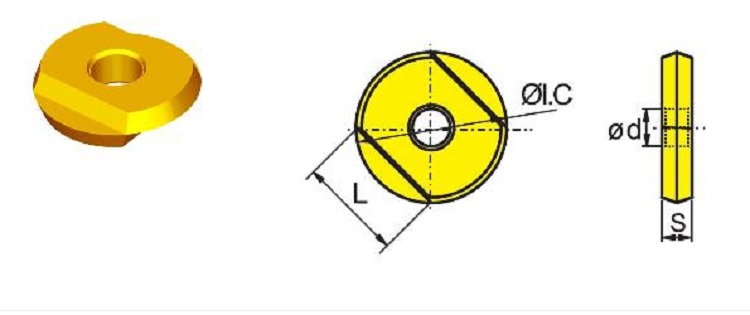

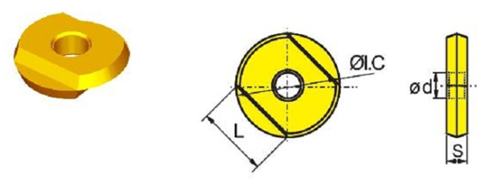

Item	Description	IC(mm)	￠d(mm)	S(mm)	α
1	Z-ROHX10026	10	2.5	2.6	20°
2	Z-ROHX1203	12	4	3	20°
3	Z-ROHX1604	16	5	4	20°
4	Z-ROHX2005	20	5	5	20°
