Cut Off Parting Inserts

1、Application：Parts cut off and remove the small cylinders 2、Materials: Steel、Stainless Steel 3、Head grinding to assure high precision、good dimensional accuracy and good consistency; 4、Customized designing acceptable 5、Exchangable to ZCC-CT or Korloy

电子邮件: cwtools@cwprecisiontools.com

描述

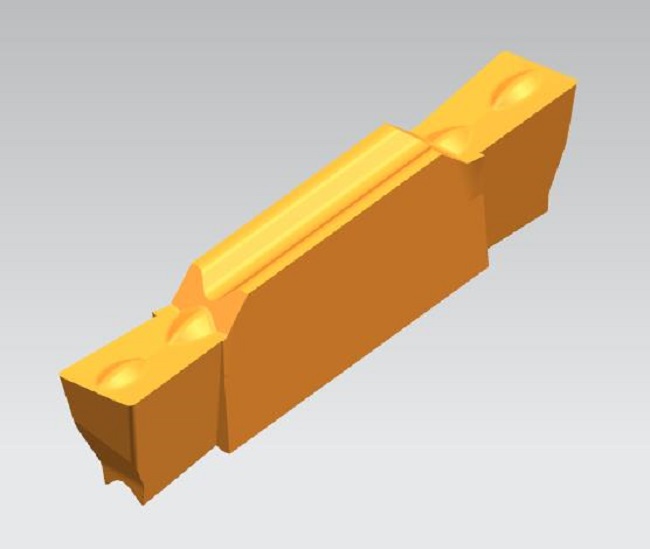

3D Image

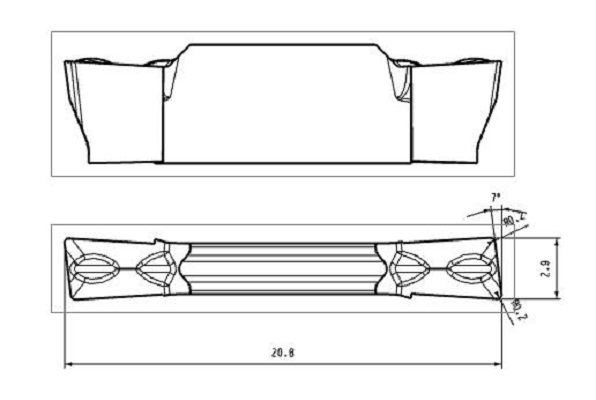

2D
Propertitiy	1、Application：Parts cut off and remove the small cylinders
	2、Materials: Steel、Stainless Steel
	3、Head grinding to assure high precision、good dimensional accuracy and good consistency;
	4、Customized designing acceptable
	5、Exchangable to ZCC-CT or Korloy

Item	Description	Length(mm)	Width(mm)	Angle αº
1	MGMN300-M-6R/L	20.8	2.8	6°
2	MGMN300-M-15R/L	20.8	2.8	15°
3	MGMN400-M-6R/L	20.8	3.8	6°
4	MGMN400-M-15R/L	20.8	3.8	15°
5	MGMN500-M-6R/L	20.8	4.8	6°
6	MGMN500-M-15R/L	20.8	4.8	15°
